SignzWare SW-DSP 4K | Industrial Fanless Digital Signage Player

4K UHD

Full 3840 x 2160 resolution support for stunning visuals.

Fanless

Aluminium CPU cooling design for noiseless 24/7 operation.

Powerful Performance

Industrial

Rock-solid build optimized for Scala and professional environments.

Amazing UHD Performance

Supports Ultra HD (4K2K@60p) resolution and HEVC/H.265 & VP9 high-definition video playback.

HDMI 2.0 for smooth video transmission.
Second HDMI port for extended video output.
Dual Giga LAN and Dual Wifi for IOT gateway applications.

Engineered for 24/7 Reliability

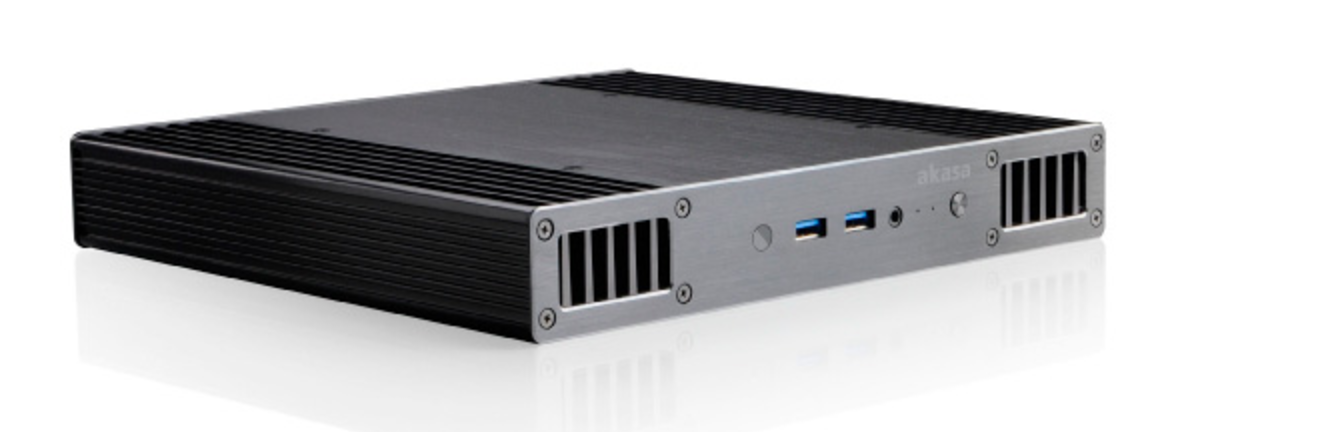

Designed with an aluminum fanless CPU cooling system that eliminates mechanical failure points.

Noiseless operation under full load.
Energy-efficient industrial components.
Available in standard and 1U Rack Mount configurations.

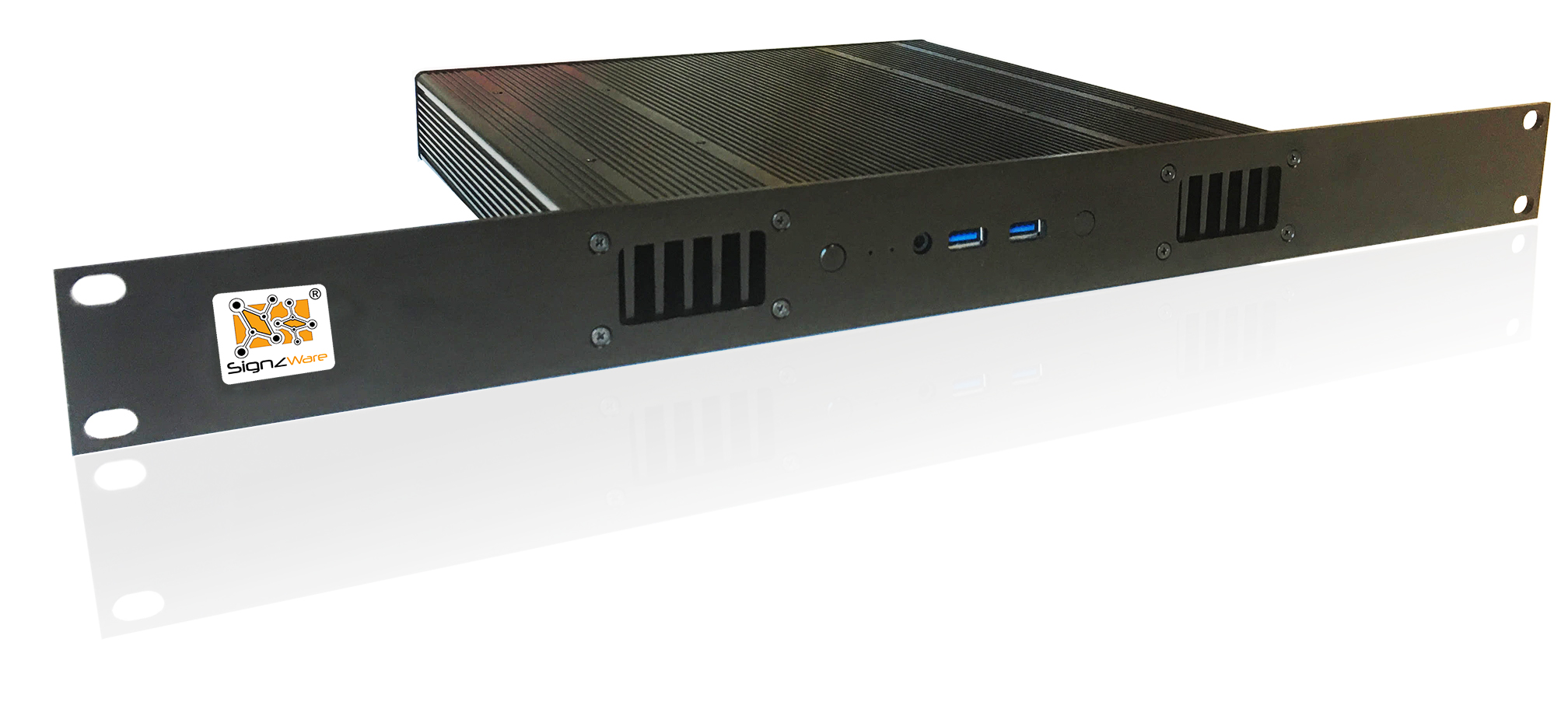

1U Rack Mount Configuration

Professional Rack Deployment

The SW-DSP 4K Rack Mount version is engineered for professional data center and broadcast environments, providing seamless integration into standard 1U rack installations.

Rack Mount Features:

1U Form Factor (1.75 inches / 44.5mm height)
19-inch standard rack mounting compatibility
Dual cooling fans for enhanced thermal management
Front-accessible I/O ports for easy connectivity
Dual USB 3.0 ports for peripheral connections
Professional status indicators and power controls
Identical processing power to desktop configuration
Hot-swappable SSD storage capabilities

Perfect for: Broadcast centers, digital signage networks, corporate AV installations, and professional display environments requiring centralized content management.

Technical Specifications

CPU Type	Intel® Core™ Ultra 5 225H Processor
Video Resolution	3840 x 2160 @ 4K
Memory	8 GB DDR5 (Up to 16GB available)
Storage	256 GB SSD Hard Drive
Video Output	Dual HDMI / Mini Display Port options
Communication	4 x USB 3.0, Dual Giga LAN, Intel Wireless-AC
Audio	7.1 Digital (mHDMI mDP); L+R+mic

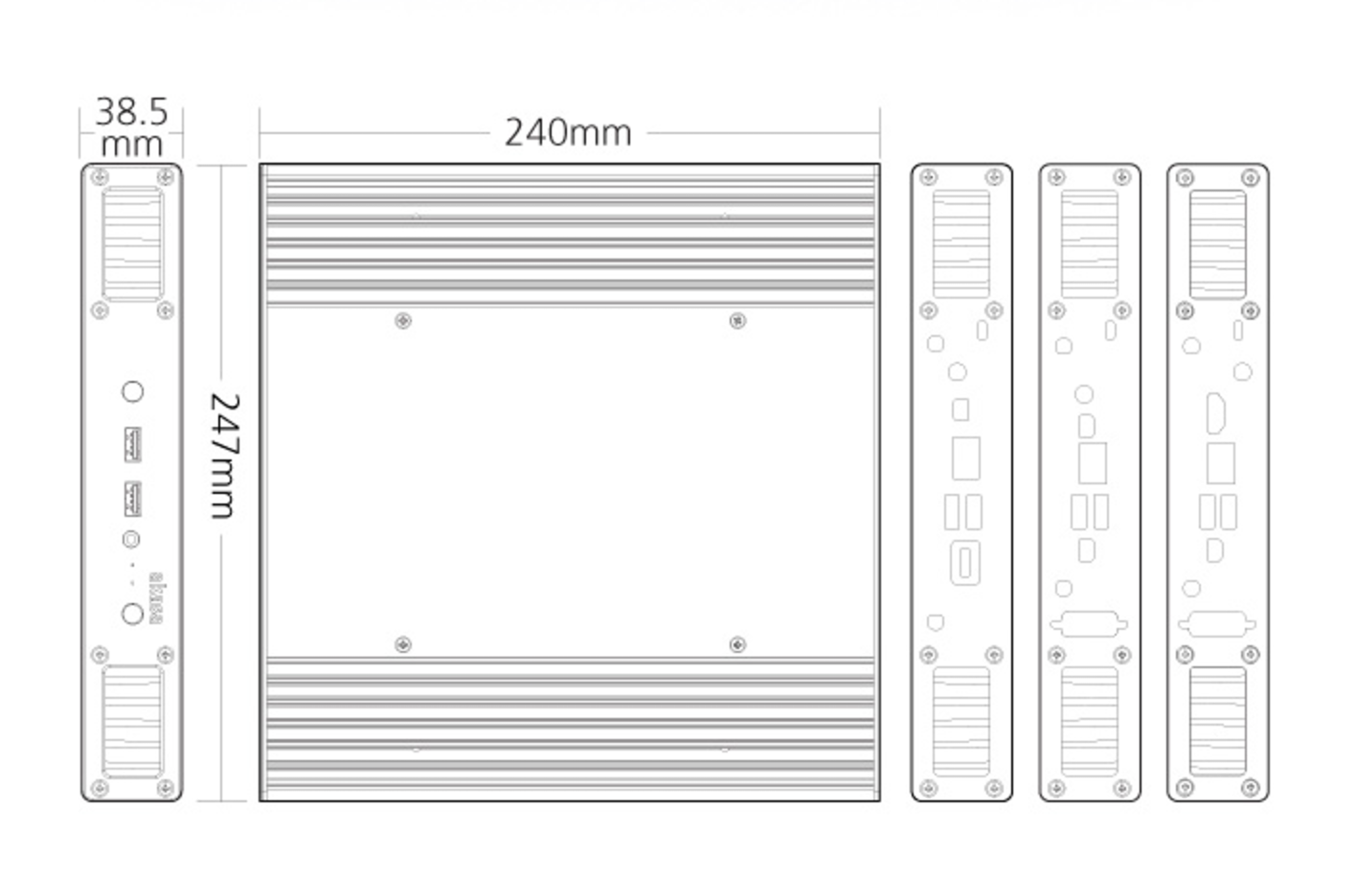

Dimensions	247 x 240 x 38.5mm (W x D x H)
Mounting	VESA Standard or Professional 1U Mount
